Sound Metering Details

Sound-level meters are hosted by volunteers in the area. Each meter consists of a commercial sound-level meter (Gain Express SLM-24 or DFRobot Gravity: Analog Sound Level Meter) connected to a microprocessor (ESP8266).

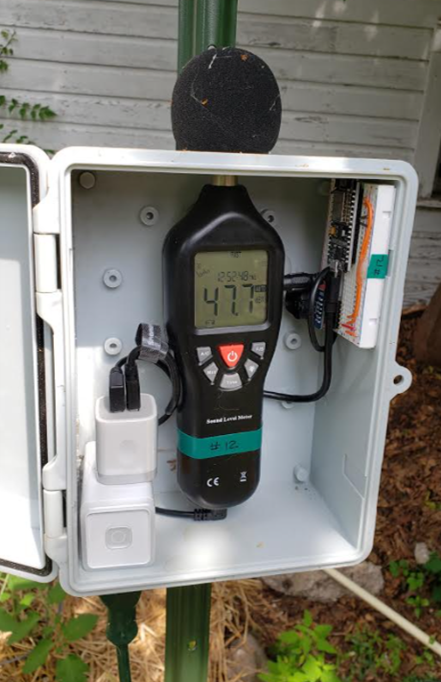

SLM-24 (Gain Express) based
sound monitoring station

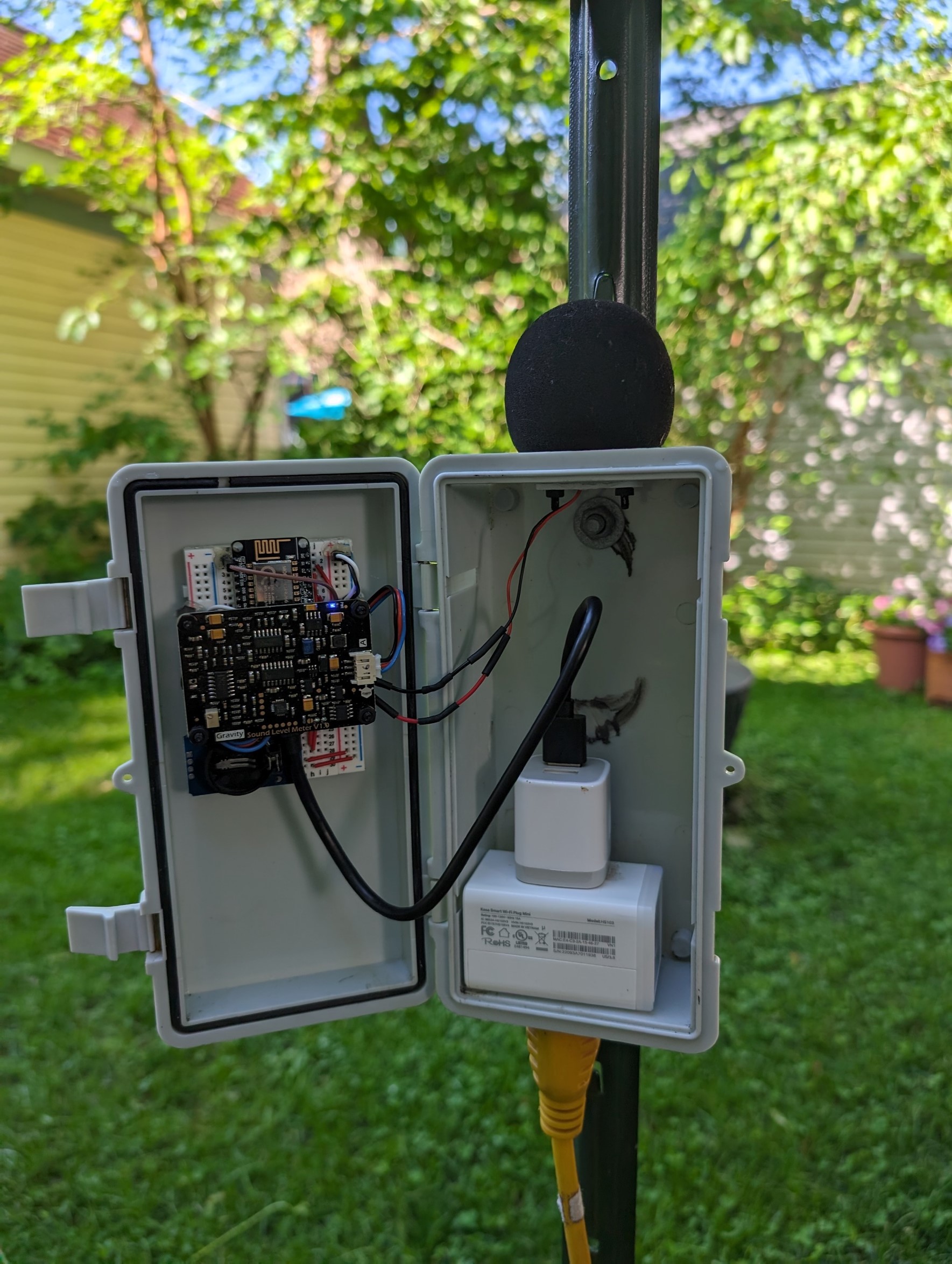

Gravity: Analog Sound Level Meter (DFRobot)
based sound monitoring station

The meters output a voltage that is proportional to decibels. The voltage signal is read by the microprocessor about 1,000 times per second, converted back to decibels and transmitted once a second to a central server, where the information is stored in a permanent database for live mapping and later analysis.

The transmitted data include one-second average decibel levels as well as the maximum and minimum impulse (1/8th second) readings within the second.

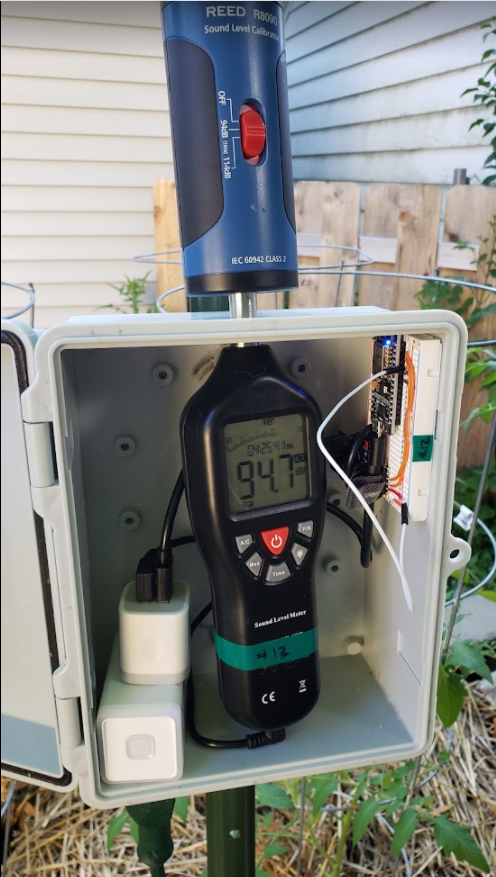

The meters have a listed accuracy of ± 1.5 dB, and are individually calibrated with NIST-traceable instruments.

Additional details about the metering hardware and calibration can be downloaded here.

Side-by-side testing has shown that the meters are less accurate below 50 dB, which are of less interest for this application. Although the meters are listed as having a dynamic range of 30 to 120 dB, experience shows that the Gain Express meters actually have varying "floor" readings of 40 to 50 dB: below these levels, the meter indicates a constant sound level, even if actual level is lower.

Meters are typically mounted on a stake about 4 feet off the ground in a back or side yard. Some meters are attached to deck balconies or fence railings.
